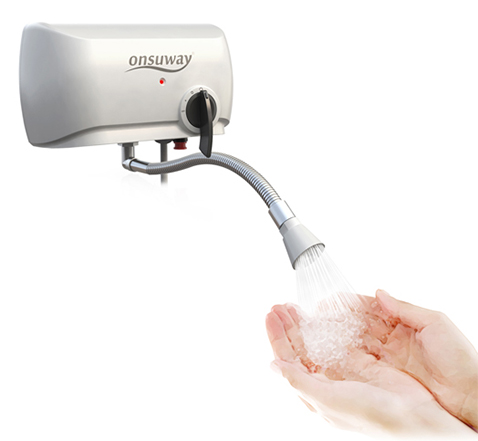

Electric Instant Water Heater mini hand shower

World’s Smallest Heating Module (2.8kw class)

  • no!electric
    charge concern

  • no!bacteria
    concern

  • no!installation
    concern

  • no!burning, short
    circuit danger

  • It can be installed anywhere since it is ultra-small electric instant water heater.
  • Instant water is available just by water and power plug connection.
  • You don’t have to concern about electric charge since standby power is about 1w.
  • There is no corrosion or short circuit danger by the adoption of ceramic heater.
  • Anyone can use it by the adoption of double heating protection device of water since its water temperature is fixed as 36˚C max.
  • There is no overheat danger by the adoption of dual overheat protection device.
  • You don’t have to concern about bacteria by instant heating of the water without hot water reservoir.

How To Use

It’s easy to install anywhere! Only one second, and the hot water is at hand!

Office, pantry, restaurant, billiard room, and gold club. You name it!

The device can be easily installed and is suitable for public places and at family home.

  • golf club
  • restaurant
  • office
  • billiard room

Power Consumption

Power Consumption
Item Data
Standby Power about 1w
Water Temperature 36℃
Instant Power
(Based on Water Input Temperature 12°, Water Output Temperature 36°, Flow Rate 1.5L/min.) 		2.4 ~ 2.6kw
Electric charge for washing hands with the water of 36°C
(Based on Water Input Temperature 12°, Water Output Temperature 36°, Flow Rate 1.5L/min., Washing Hands Time 30 sec., 100 Won/Kw) 		2.1 Won
Monthly electric charge for use of 36°C 120L water everyday
(Based on Water Input Temperature 12°, Water Output Temperature 36°, Flow Rate 1.5L/min., 100 Won/Kw) 		10,400 Won/Month

Water Volume & Water Temperature Change according to the Water Input Temperature and Its Power Consumption

Power Consumption
Water
Volume		 Water Input
Temperature		 Water Output
Temperature		 Power Consumption
per Hour
L/min °C °C
(Max 36°C)		 watt/Hour
(Max. 2800w)
1 5 36 2284
8 36 2063
10 36 1916
12 36 1768
15 36 1547
1.5 5 30 2763
8 33 2763
10 35 2763
Power Consumption
Water
Volume		 Water Input
Temperature		 Water Output
Temperature		 Power Consumption
per Hour
L/min °C °C
(Max 36°C)		 watt/Hour
(Max. 2800w)
1.5 12 36 2653
15 36 2321
2 5 23 2653
10 28 2653
15 33 2653
2.5 5 20 2763
10 25 2763
15 30 2763

Range of Water pressure : 1~3kgf/cm2

Applied Voltage : AC 217~218V

Specification

Specification
Item Spec Remark
Input Voltage 220Vac, Single Phase 60Hz
Water Supply Pressure 1~3kgf/cm2
Maximum Power 2,800w
Power 2,600w ∆Based on 220Vac, T=24°C, 1.5L/min
Standby Power about 1w
Water Temperature 36°C Fixed Type 220Vac, ∆Based on 220Vac, T=24°C, 1.5L/min
Maximun Hot Water Amount 1.5L/min. ∆Based on 220Vac, T=24°C, 1.5L/min
Maximun Hot Water Temp. 36°C
Hot Water Discharge Time less than 2 sec. Measuring heater module outlet: less than 1 second
Hot Water Temp. Deviation within ±1°C Based on measuring heater module outlet(constant supply)
Heater Spec Plate Type Ceramic Heater
Outside Dimension 218 x 120 x 115mm
Heater Housing ABS GF20%
Water Heater Housing Flame Retardant ABS
Safety Device (Water Overheat) THERMOSTAT, THERMISTOR
Safety Device (Heater Overheat) THERMOSTAT, Temp. FUSE

Specification or function may change for functional improvement or appearance of this product.

  • Model Name : CM-2228
  • Water Pressure : 1~3kgf/cm2
  • Rated Voltage : 220V, 60Hz, Single Phase
  • Dimension : 218 x 120 x 115mm
  • Power Consumption : 0~2.8kw
  • Weight : 1.1kg
  • Safety Certification No. : JC07049-9001
  • IP No. : IP-43
